SOLID Principles

S → Single Responsibility Principle
O → Open/Closed Principle
L → Liskov Substitution Principle
I → Interface Segregation Principle
D → Dependency Inversion Principle

Single Responsibility Principle

A class should always have one responsibility and there should be only a single reason to change it.

Goal: To create highly cohesive classes that are easier to understand, test, and maintain.

Bad Implementation

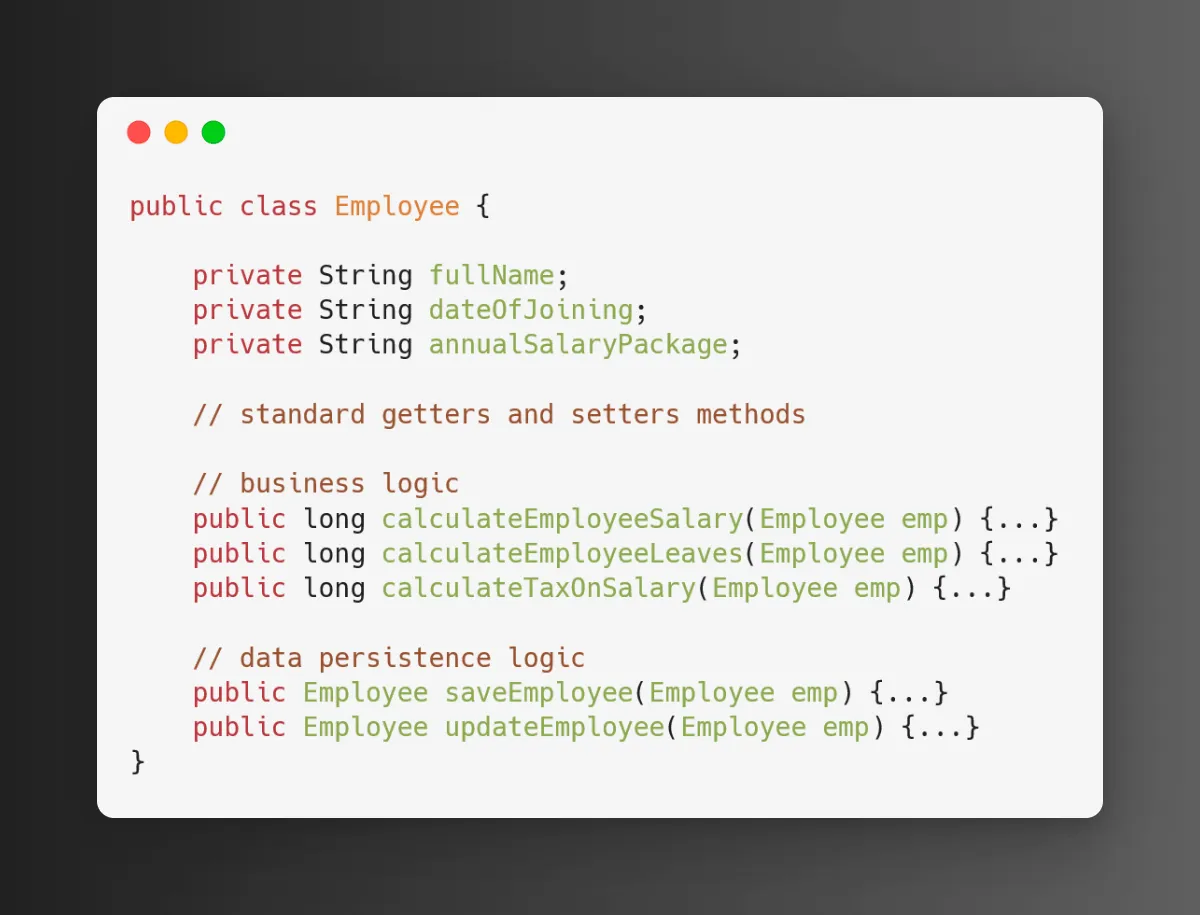

Below Employee class contains personal details, business logic to perform a few calculations, and DB logic to save/update.
Our class is tightly coupled, hard to maintain, multiple reasons to modify this class.

Employee class with multiple responsibilities

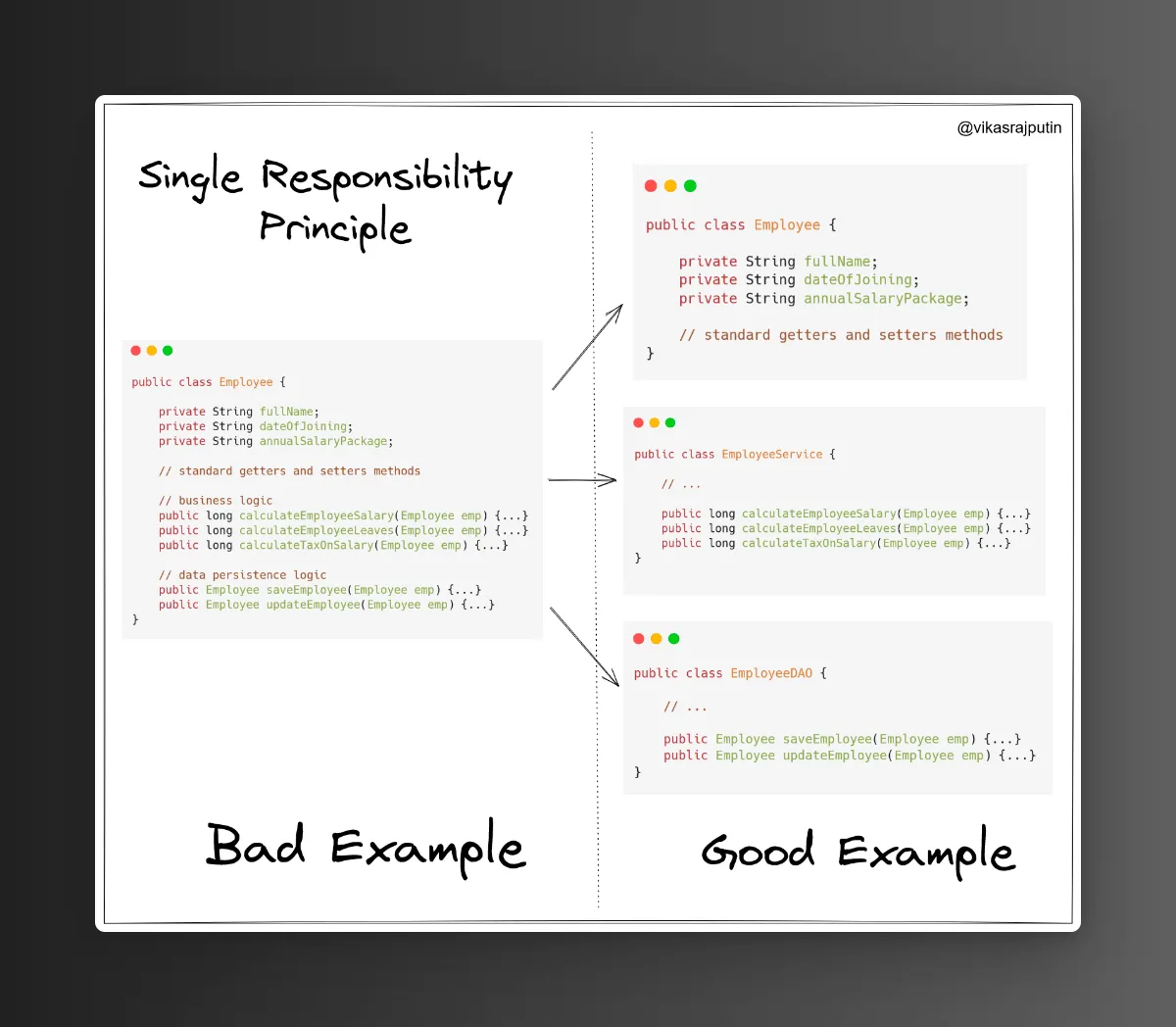

Good Implementation

We can split a single Employee class into multiple classes as per their specific responsibility. It made our class loosely coupled, easy to maintain, and only single reason to modify.

Employee class split - Part 1

Employee class split - Part 2

Open/Closed Principle

Class should be Open for Extension but Closed for Modification.

Goal: To allow adding new functionality without modifying existing code, reducing the risk of introducing bugs.

Bad Implementation

Below EmployeeSalary class calculates salary based on employee type: Permanent and Contractual.
Issue: In the future, if a new type (Part-time Employee) comes then the code needs to be modified to calculate the salary based on employee type.

Violating Open/Closed Principle

Good Implementation

We can introduce a new interface EmployeeSalary and create two child classes for Permanent and Contractual Employees.
By doing this, when a new type comes then a new child class needs to be created and our core logic will also not change from this.

Following Open/Closed Principle - Interface

Following Open/Closed Principle - Implementation

Liskov Substitution Principle

Child Classes should be replaceable with Parent Classes without breaking the behavior of our code.

Goal: To ensure that derived classes can be used in place of their base classes without causing unexpected behavior.

Bad Implementation

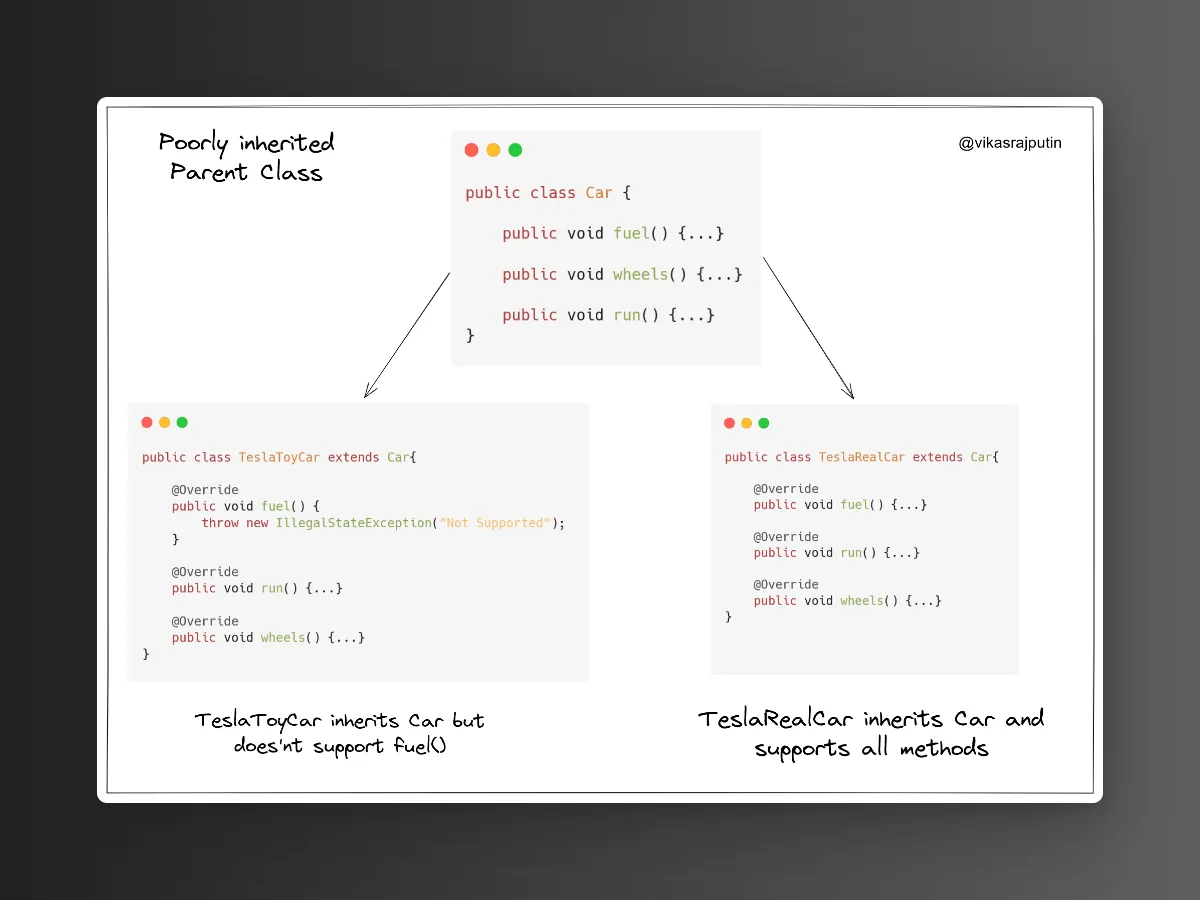

Below, TeslaToyCar extends Car but does not support fuel() method as its toy. That’s why it’s violating the LS principle.
In our code where ever we’ve used Car, we can’t substitute it directly with TeslaToyCar because fuel() will throw Exception.

Violating Liskov Substitution Principle

Good Implementation

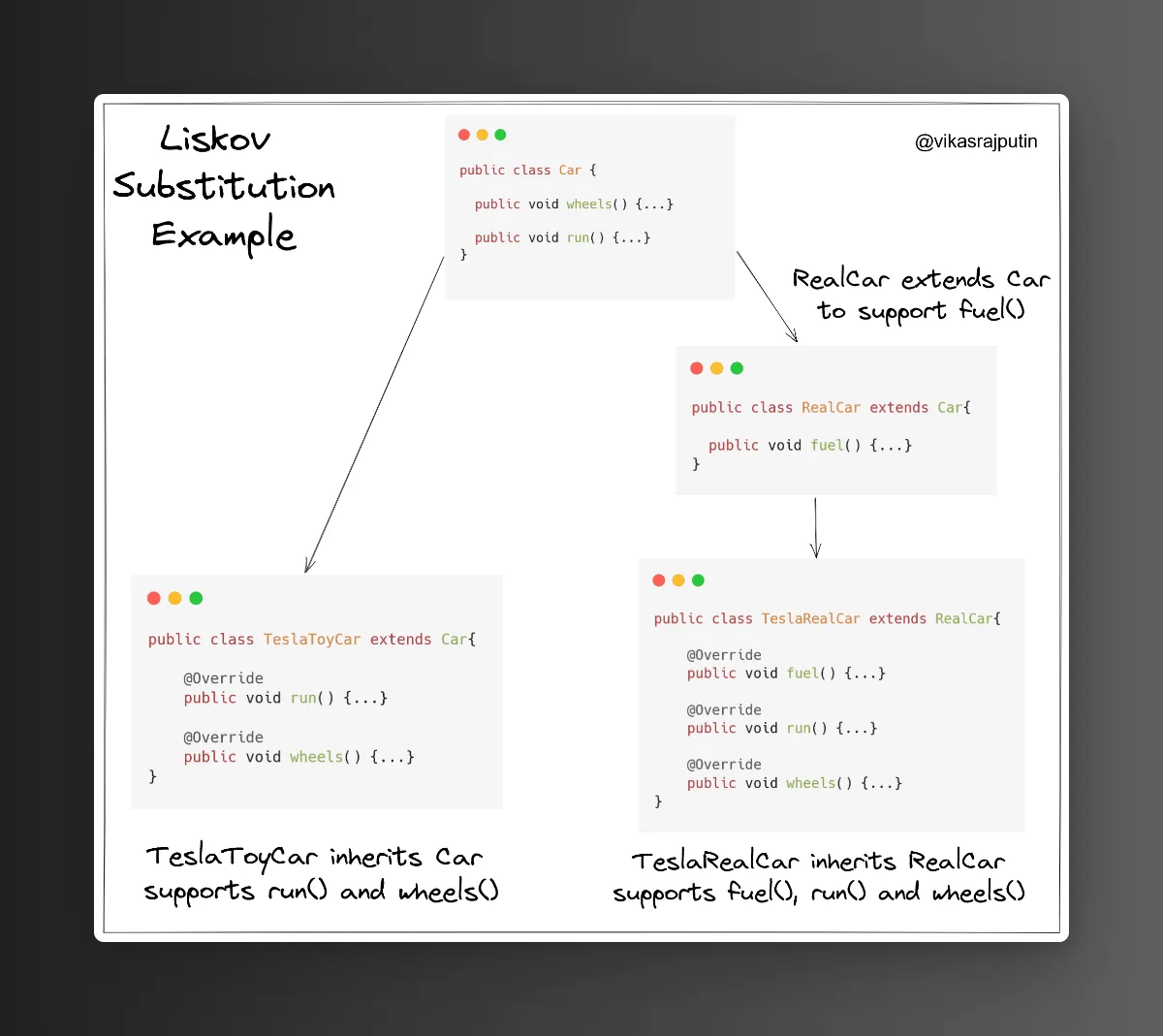

Creating new subclass RealCar from parent Car class, so that RealCar can support fuel() and Car can support generic functions support by any type of car.
As shown below, TeslaToyCar and TeslaRealCar can be substituted with their respective Parent class.

Following Liskov Substitution - Class Hierarchy

Following Liskov Substitution - Implementation

Interface Segregation Principle

Interface should only have methods that are applicable to all child classes.
If an interface contains a method applicable to some child classes then we need to force the rest to provide dummy implementation.
Goal: To avoid creating large, monolithic interfaces that force classes to implement methods they don’t need.

Bad Implementation

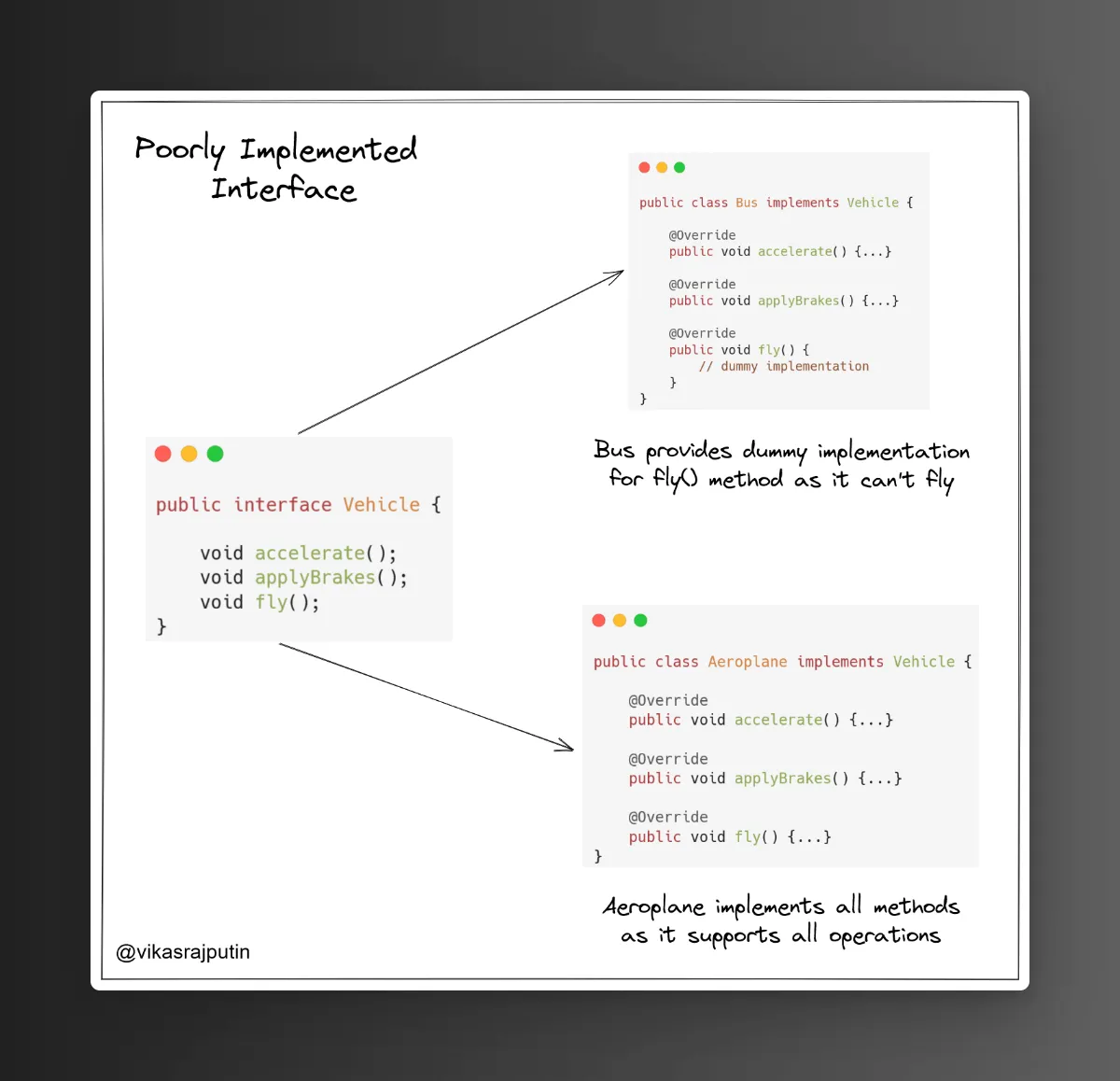

Vehicle interface contains the fly() method which is not supported by all vehicles i.e. Bus, Car, etc. Hence they’ve to forcefully provide a dummy implementation.
It violates the Interface Segregation principle as shown below:

Violating Interface Segregation Principle

Good Implementation

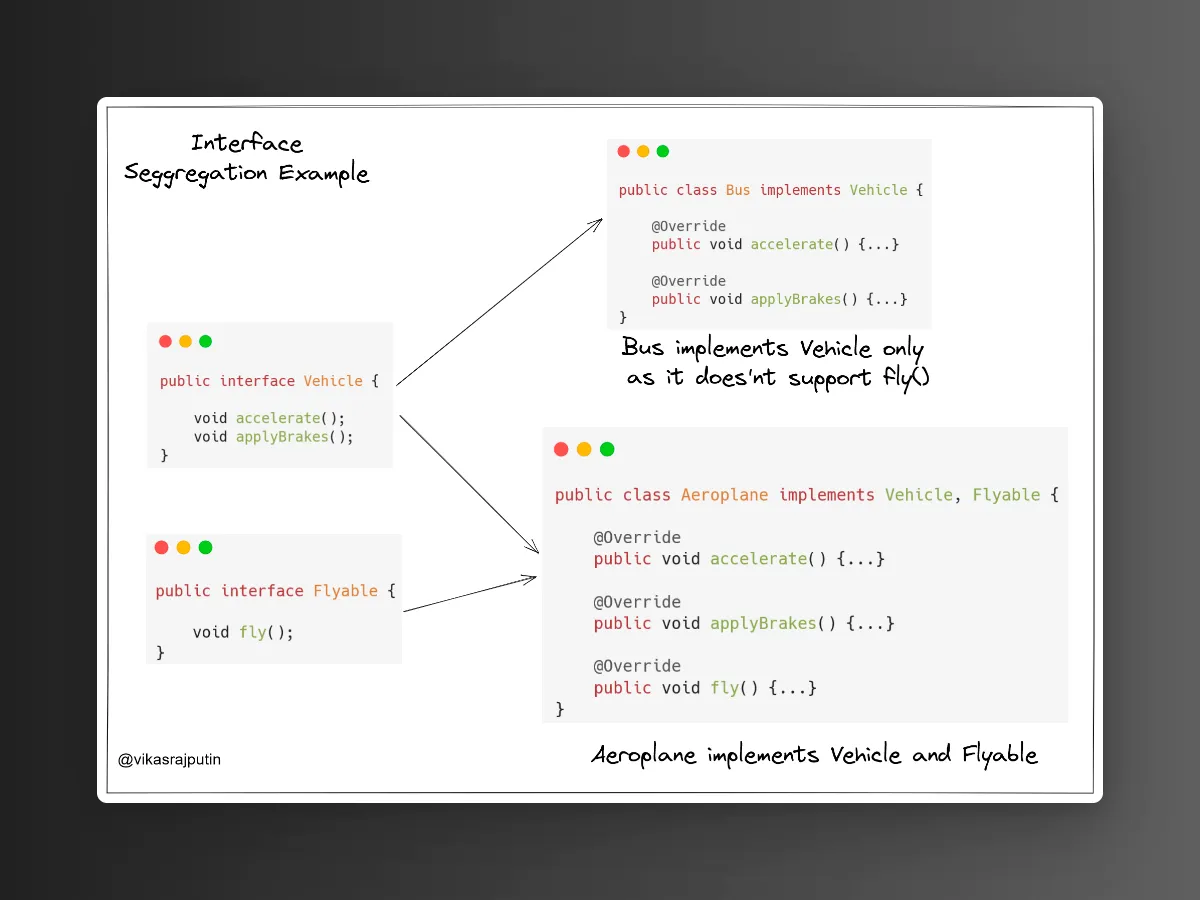

Pulling out fly() method into new Flyable interface solves the issue. Now, Vehicle interface contains methods supported by all Vehicles.
And, Aeroplane implements both Vehicle and Flyable interface as it can fly too.

Following Interface Segregation - Interface Design

Following Interface Segregation - Implementation

Dependency Inversion Principle

Class should depend on abstractions (interface and abstract class) instead of concrete implementations.
If implementation changes then the class referring to it via abstraction won’t change.
Goal: To reduce coupling between classes by making them depend on abstractions rather than concrete implementations.

Bad Implementation

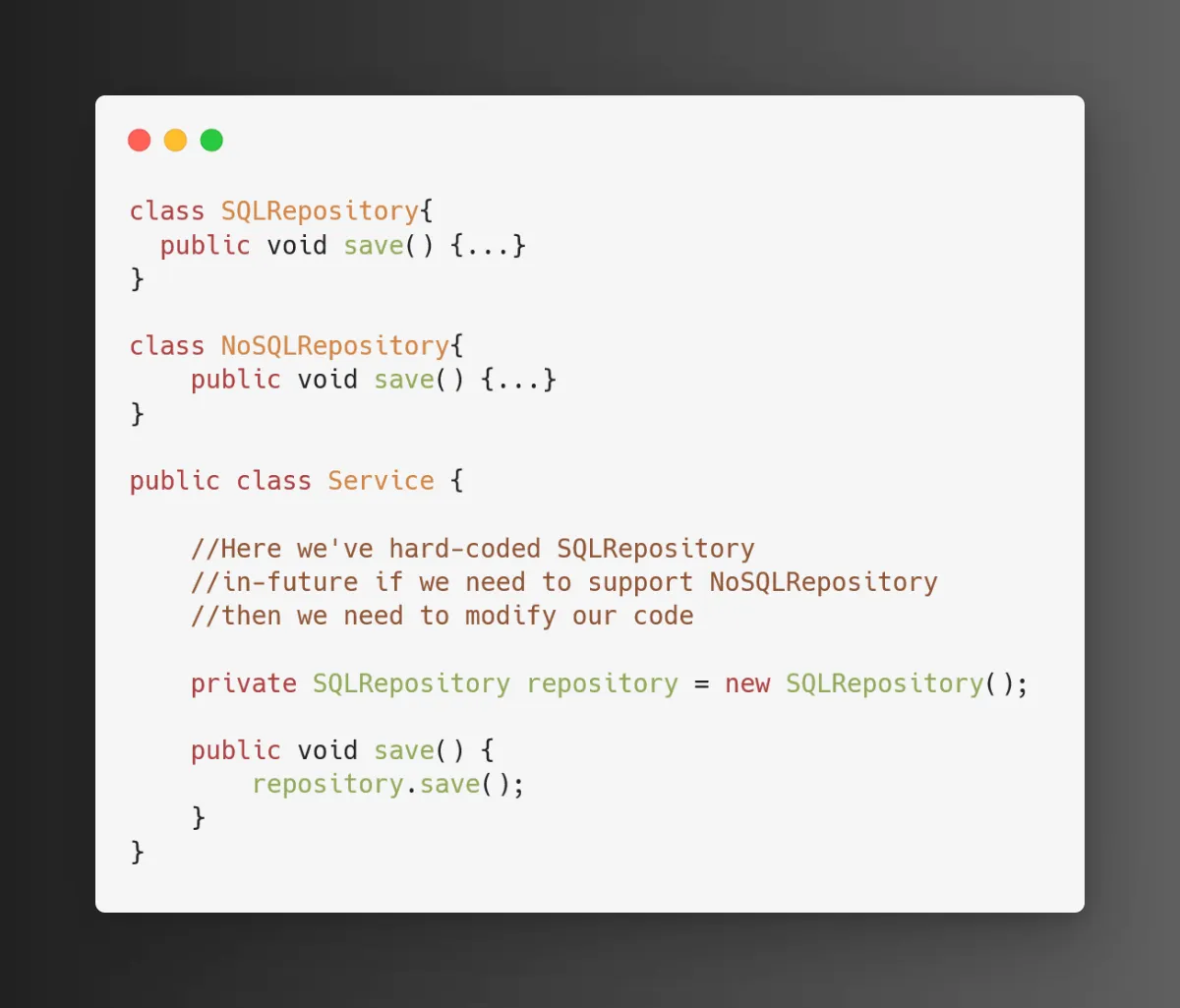

We’ve got a Service class, in which we’ve directly referenced concrete class (SQLRepository).
Issue: Our class is now tightly coupled with SQLRepository, in future if we need to start supporting NoSQLRepository then we need to change Service class.

Violating Dependency Inversion Principle

Good Implementation

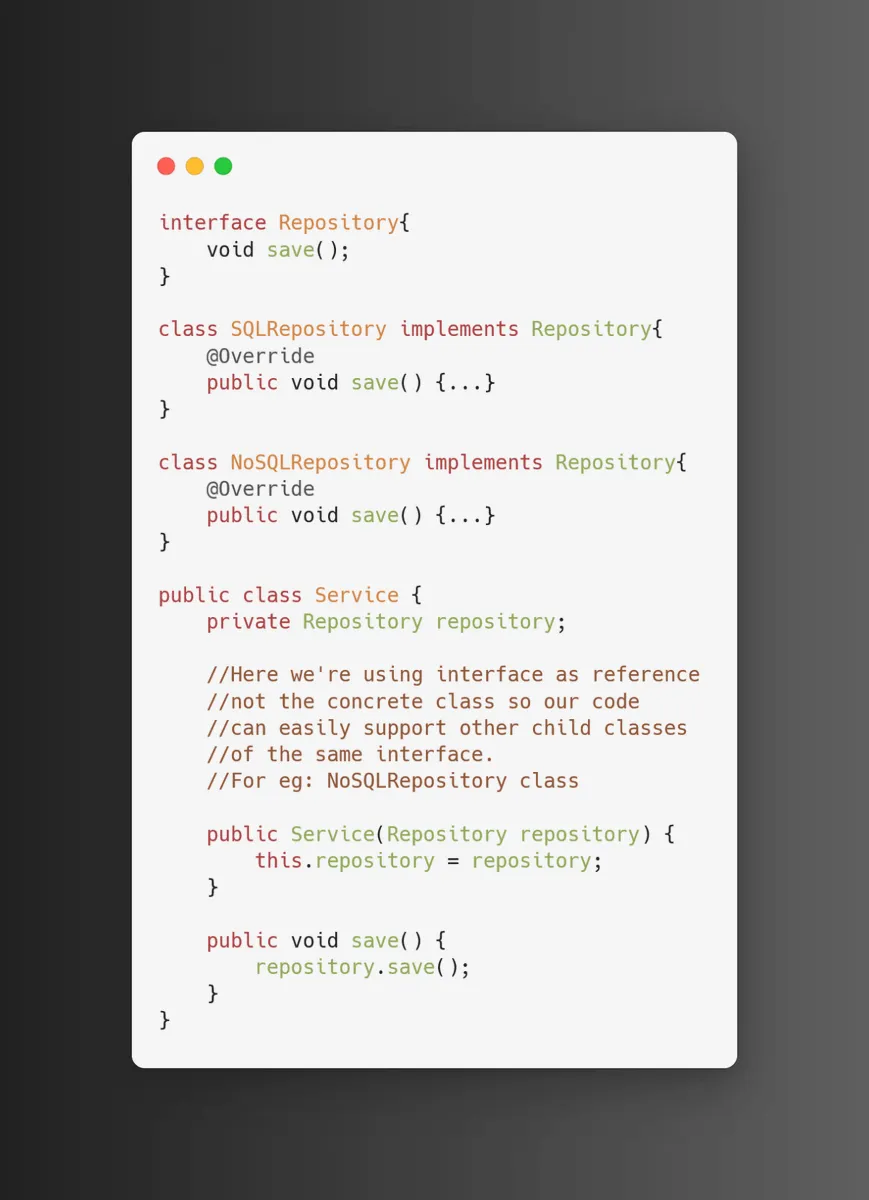

Create a parent interface Repository and SQL and NoSQL Repository implements it. Service class refers to Repository interface, in future if we need to support NoSQL then simply need to pass its instance in constructor without changing Service class.

Following Dependency Inversion - Interface

Following Dependency Inversion - Implementation
