Design a Search Autocomplete System

Introduction

Autocomplete, also known as typeahead or incremental search, provides real-time suggestions to users as they type in search boxes. The system must efficiently deliver top-k relevant and popular suggestions based on historical query data.

Key Features

• Suggest up to 5 autocomplete results.
• Based on query popularity (frequency).
• Support only lowercase English characters.
• Fast response time (under 100 ms) and scalable.

---

Step 1: Understanding the Problem

Requirements

1. Real-Time Suggestions: Display relevant matches as the user types.
2. Top-k Results: Return up to 5 results sorted by popularity.
3. Scalability: Handle 10 million DAU with a peak QPS of 48,000.
4. High Availability: Handle failures without system downtime.
5. Data Growth: Support daily storage growth of 0.4 GB for new query data.

---

Step 2: High-Level Design

At the high-level, the system is broken down into two services:

1. Data Gathering Service:

   • Collects user queries and aggregates them for frequency analysis in real-time.
   • Real-time processing is not practical for large data sets; however, it is a good starting point

2. Query Service: Provides the top-k suggestions based on the user’s input.

---

Data Gathering Service

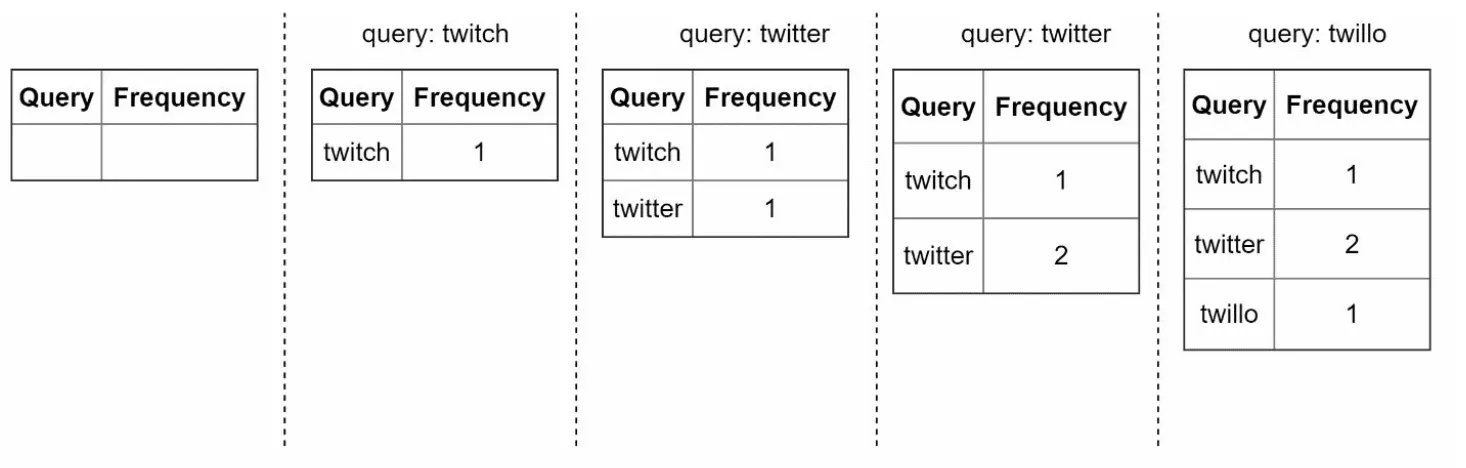

• Aggregates query data from analytics logs and updates the frequency table.
• Processes historical data weekly to build a trie (prefix tree).

Query Service

• Uses the frequency table from data gathering service.
• Processes user input and retrieves top-k suggestions from the frequency table using a Trie.
• Optimized for fast lookups using caching and efficient data structures.

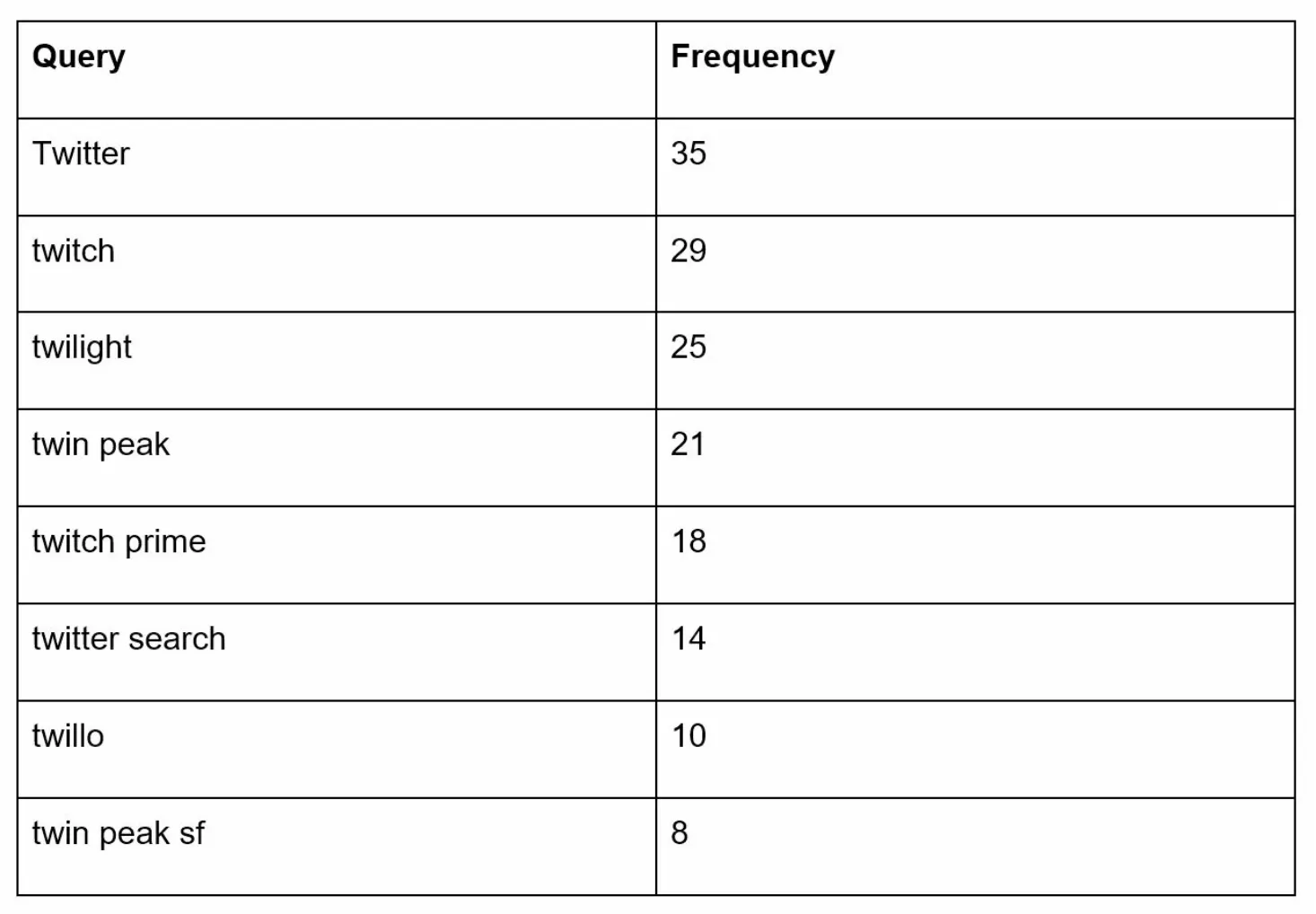

• For example when a user types “tw” in the search box, the following top 5 searched queries are displayed.

---

Step 3: Design Deep Dive

Trie Data Structure

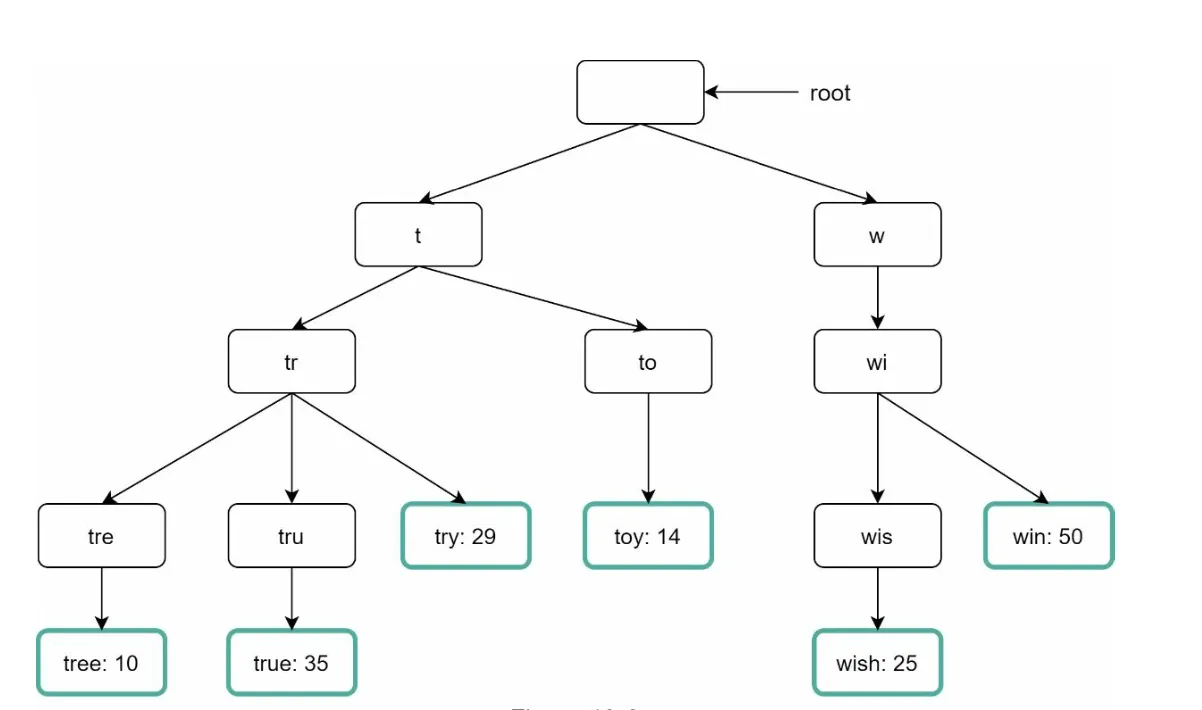

The trie is a tree-like data structure used to store and retrieve query strings efficiently.

Key Features

1. Compact Storage: Represents prefixes hierarchically to minimize redundancy.

2. Frequency Information: Stores the popularity of queries at each node.

3. Steps to get top k most searched queries

   • Find the prefix
   • Traverse the subtree from prefix node to get all valid children
   • Sort the children and get top k

4. Optimizations:

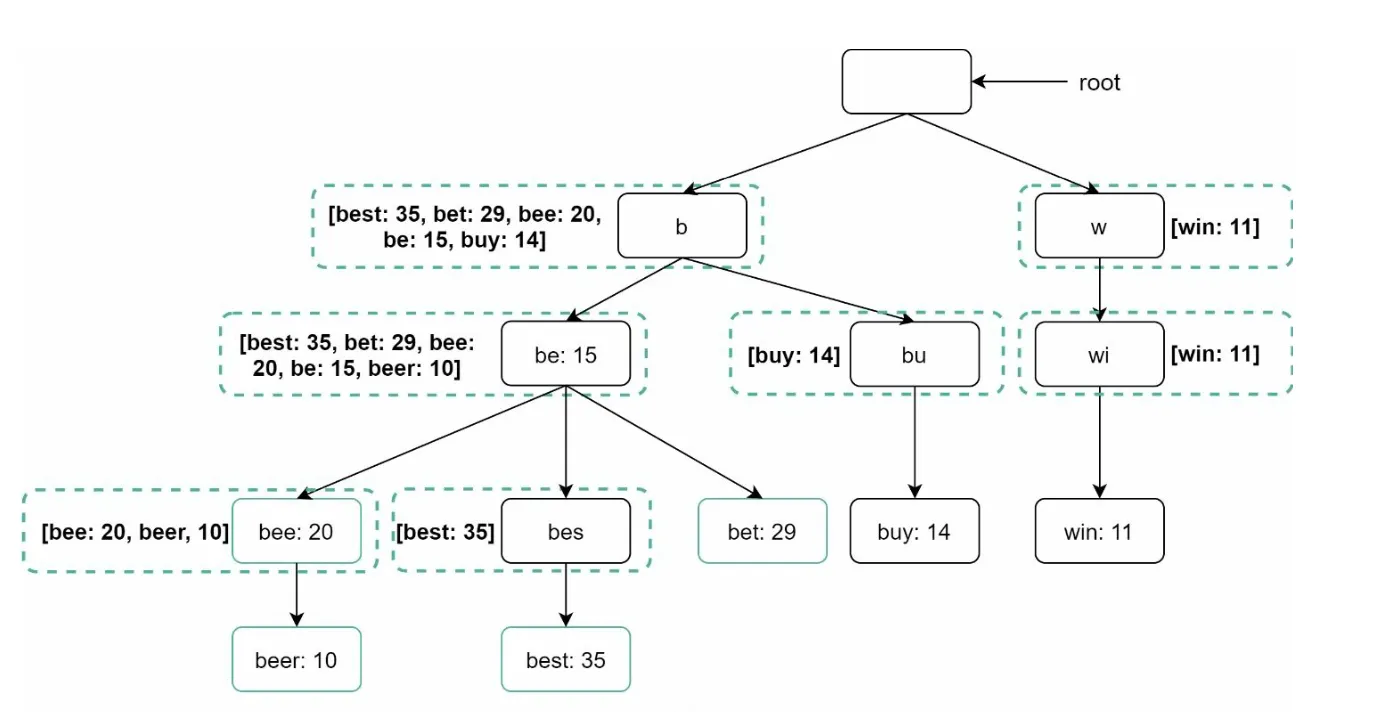

   • Cache top-k queries at each node to speed up retrieval and avoid traversing the whole trie.



   • Limit prefix length to reduce search space as users rarely type a loong search query (say 50).

Trie Operations

1. Create:

   • Built weekly using aggregated query data.
   • The source of data is from Analytics Log/DB.

2. Update: Rarely updated in real-time; weekly updates replace old data.

3. Delete:

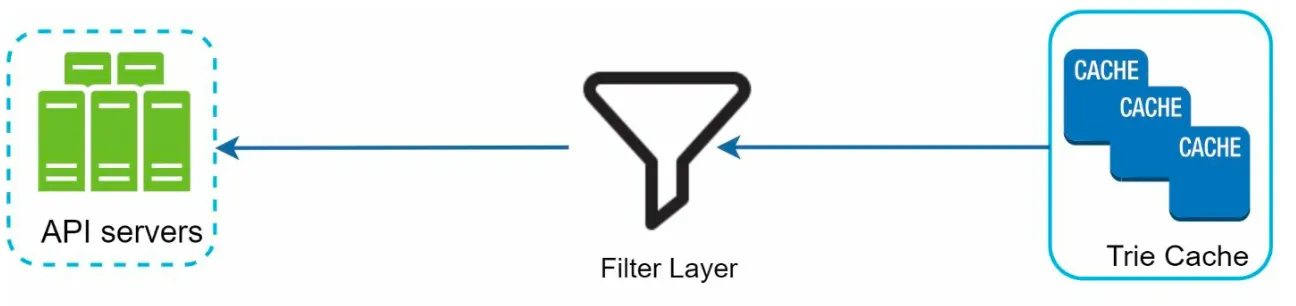

   • Filters remove unwanted or harmful suggestions (e.g., hate speech).
   • Having a filter layer gives us the flexibility of removing results based on different filter rules.
   • Unwanted suggestions are removed physically from the database asynchronically.

---

Query Processing Flow

1. Prefix Search:
   • Identify the prefix node corresponding to the user’s input.
   • Traverse the subtree to collect valid suggestions.
2. Top-k Sorting:
   • Cache top-k suggestions at each node to minimize sorting overhead.
3. Response Construction:
   • Construct results using cached data for fast response times.

---

Optimizations

1. Cache at Each Node:
   • Store the top-k queries to avoid redundant traversals.
2. Limit Prefix Length:
   • Cap prefix length to a small value (e.g., 50 characters) for faster lookups.
3. AJAX Requests:
   • Use lightweight asynchronous requests for real-time responses.
4. Browser Caching:
   • Save autocomplete results in the browser cache for frequently searched terms.

---

Data Gathering Pipeline

In the high-level design, whenever a user types a search query, data is updated in real-time. This appraoch is not practical.

• Users may enter billions of queries per day. Updating the trie on every query is not feasible.
• Top suggestions may not change much one the trie is built.

Updated Design

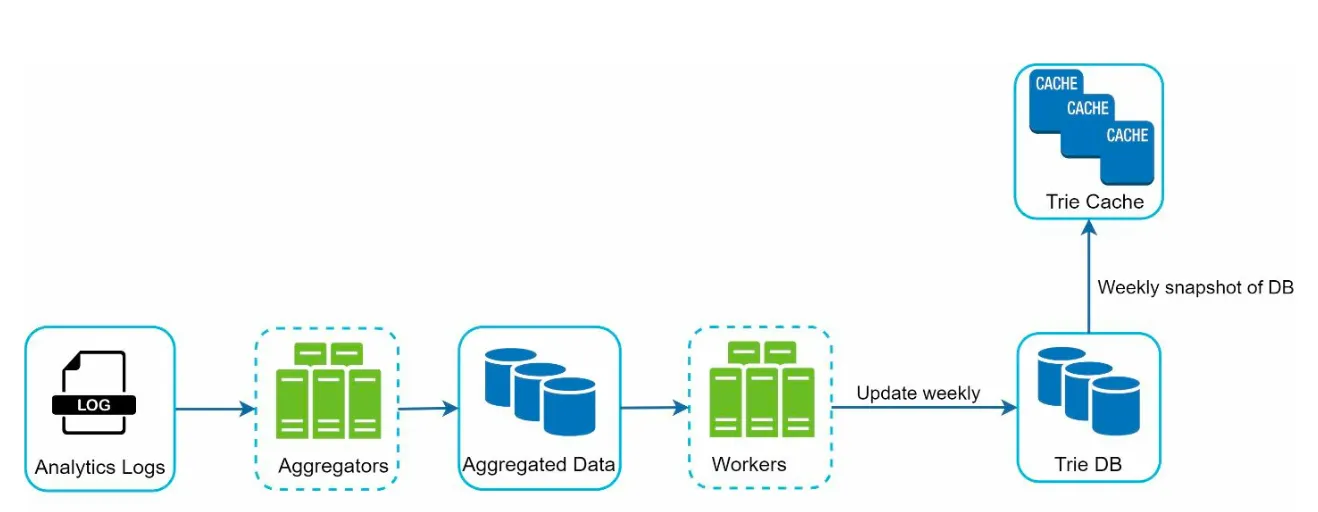

1. Analytics Logs:
   • Stores raw query data as logs for weekly aggregation.
   • Logs are append-only and are not indexed
2. Aggregators:
   • Process logs into frequency tables, suitable for trie construction.
   • For real-time applications such as Twitter, aggregate data in a shorter time interval.
   • For other cases, aggregating data less frequently, say once per week is good enough.
3. Workers:
   • Asynchronous servers rebuild the trie and store it in persistent storage.
4. Storage Options:
   • Trie Cache: Trie Cache is a distributed cache system that keeps trie in memory for fast read.
   • Trie DB

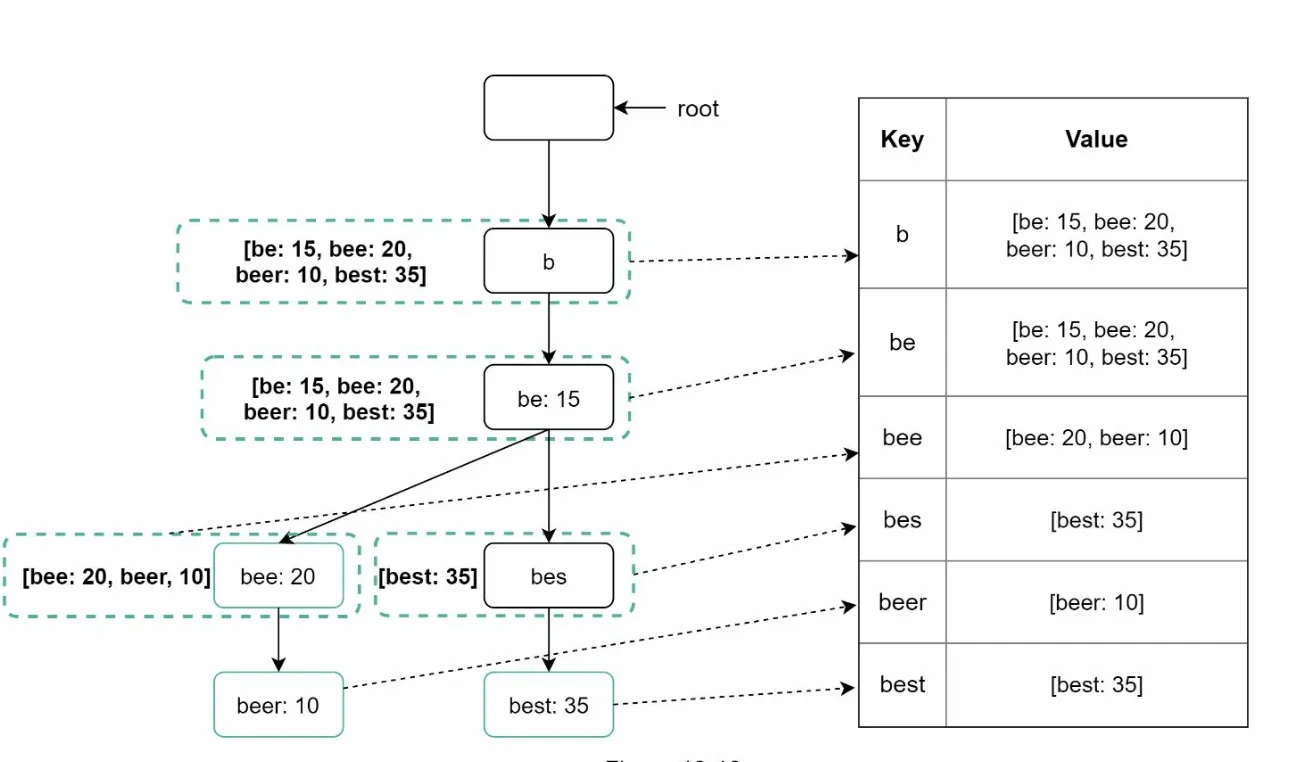

     1. Document Store (e.g., MongoDB): Since a new trie is built weekly, we can periodically take a snapshot of it, serialize it, and store the serialized data in the database like MongoDB
     2. Key-Value Store:

        • Maps prefixes to node data for fast access.

        • Every prefix in the trie is mapped to a key in a hash table.

        • Data on each trie node is mapped to a value in a hash table.



---

Scalability

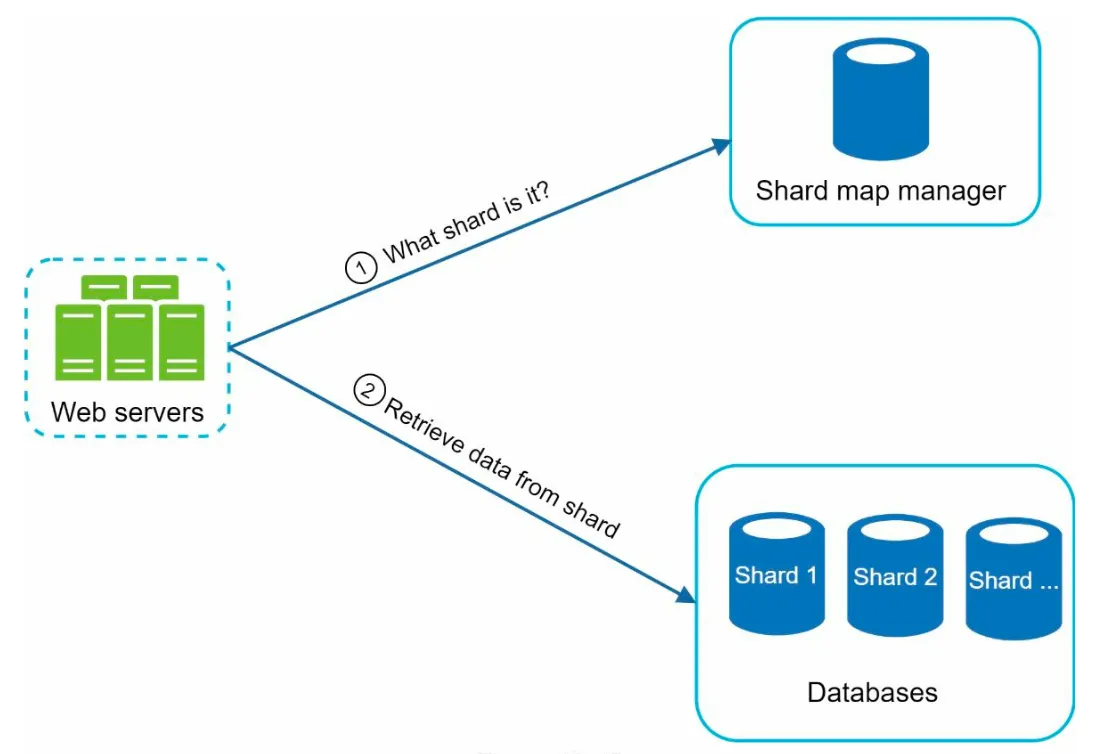

1. Sharding:

   • Distribute trie nodes across servers based on prefix ranges (e.g., a-m, n-z).
   • Further shard within prefixes to balance uneven distributions (e.g., aa-ag, ah-an).

2. Load Balancing:

   • Use a shard map manager to route requests to the appropriate server.

---

Step 4: Advanced Features

Multi-Language Support

1. Unicode Characters: Use Unicode to support non-English languages.
2. Country-Specific Tries: Build separate tries for different countries or regions.

Trending Queries

• Handle real-time events by dynamically updating trie nodes or weighting recent queries more heavily.

---
