Design a Unique ID Generator

Introduction

Section titled “Introduction”

This chapter addresses the challenge of designing a unique ID generator for distributed systems. Traditional auto-increment keys are unsuitable in distributed environments due to scalability and synchronization challenges. The focus is on creating unique, sortable, 64-bit numerical IDs that meet the following requirements:

  • IDs must be unique and ordered by date.
  • IDs must fit within 64 bits.
  • The system should generate over 10,000 IDs per second.

Step 1: Understanding the Problem

Section titled “Step 1: Understanding the Problem”

Basic Requirements

Section titled “Basic Requirements”
  • IDs must be unique and numerical and should fit in 64 bi.
  • IDs increment with time but not strictly by +1.
  • IDs should be sortable by date.
  • System must handle high throughput (10,000 IDs/sec).

Step 2: High-Level Design Options

Section titled “Step 2: High-Level Design Options”

1. Multi-Master Replication

Section titled “1. Multi-Master Replication”

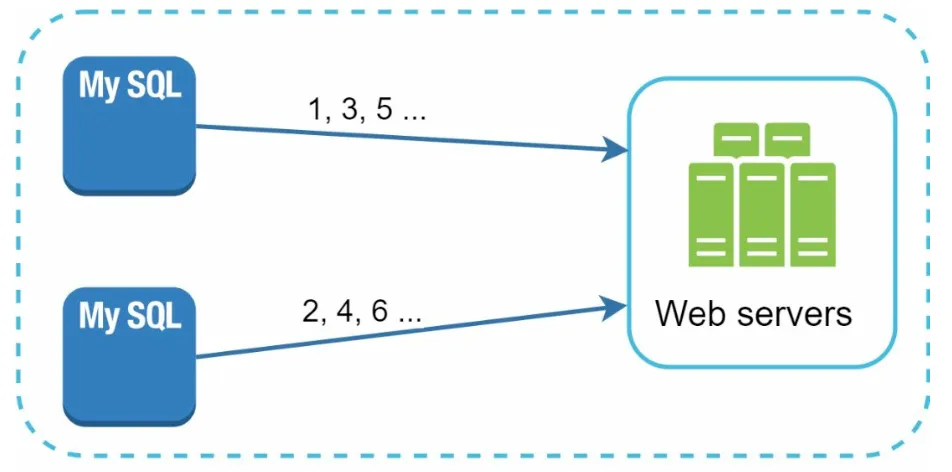

  • Approach: Use database auto_increment with step increments (e.g., +k for k servers).

    Figure

  • Drawbacks:

    • Hard to scale across data centers.
    • IDs do not always increase with time.
    • Scaling issues when servers are added/removed.

2. UUID (Universally Unique Identifier)

Section titled “2. UUID (Universally Unique Identifier)”

  • Approach:

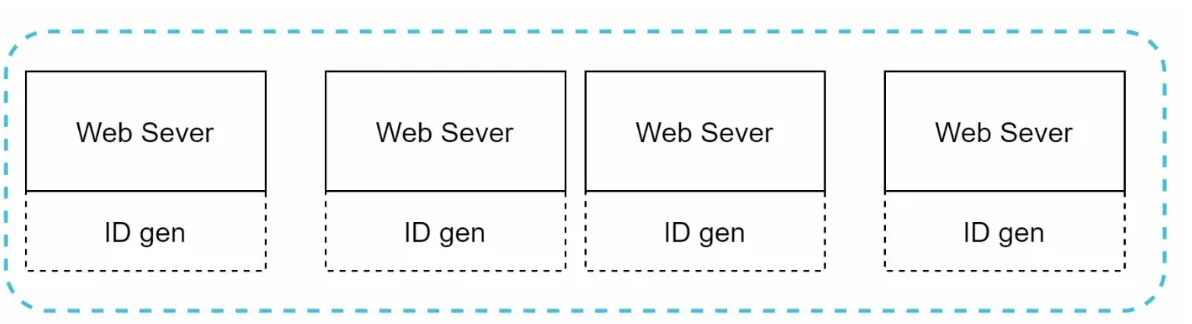

    • Generate 128-bit unique identifiers independently on each server using UUID.

    • UUIDs can be generated independently without coordination between servers

      Figure

  • Advantages:

    • No coordination needed between servers.
    • Scales easily with web servers.

  • Drawbacks:

    • Exceeds 64-bit requirement.
    • IDs are not sortable by time and may be non-numeric.

3. Ticket Server

Section titled “3. Ticket Server”

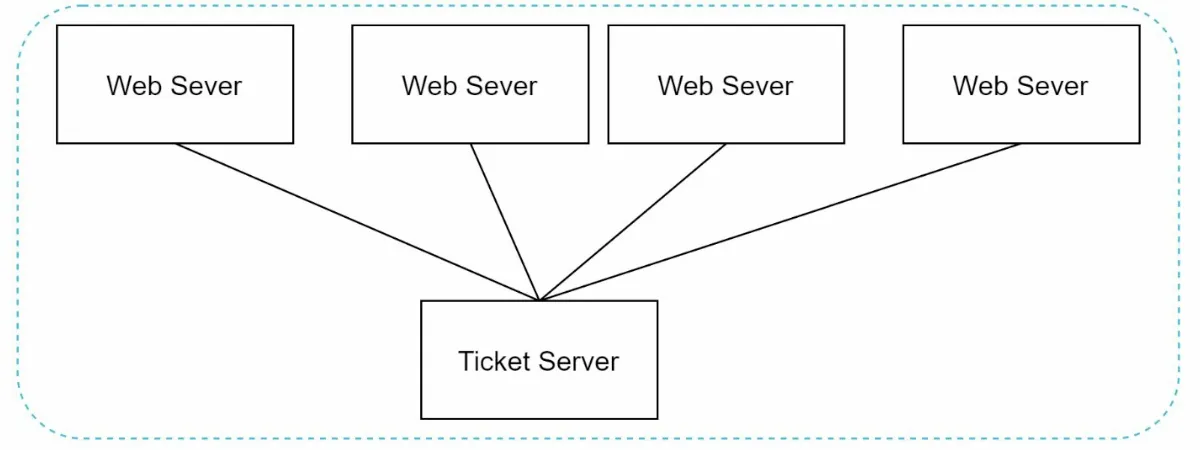

  • Approach: Use a centralized database server to increment and assign IDs.

    Figure

  • Advantages:

    • Simple to implement for small-scale systems.
    • Generates numeric IDs.

  • Drawbacks:

    • Single point of failure.
    • Synchronization challenges in multi-server setups.

4. Twitter Snowflake Approach

Section titled “4. Twitter Snowflake Approach”

  • Approach:

    Figure

    Figure

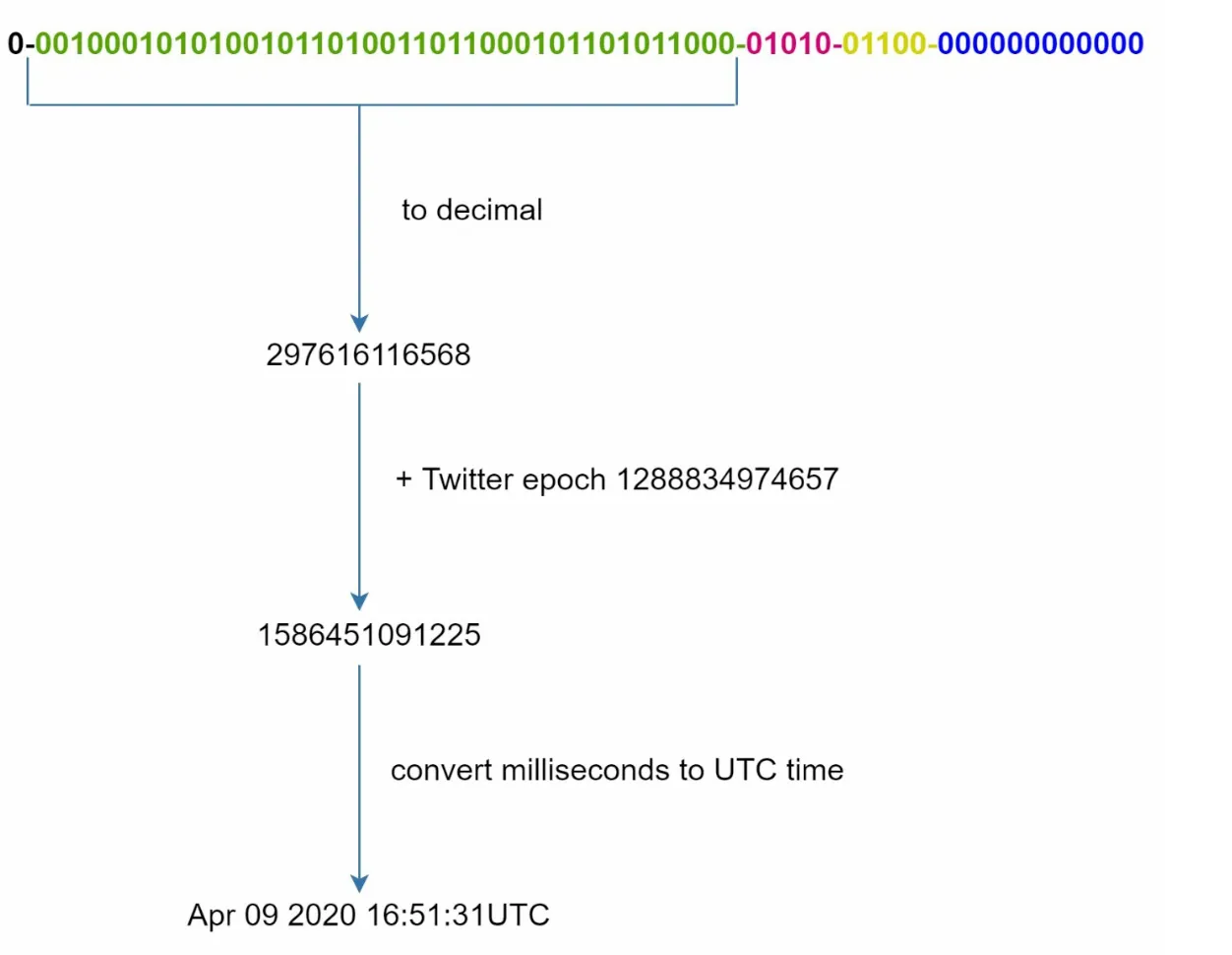

    • Divide IDs into sections to ensure uniqueness and scalability.
    • Sign Bit (1 bit): Always 0, potentially distinguishing signed and unsigned numbers.
    • Timestamp (41 bits): Milliseconds since a custom epoch (Twitter’s default is 1288834974657, equivalent to Nov 04, 2010, 01:42:54 UTC). Ensures IDs are time-ordered.
    • Datacenter ID (5 bits): Identifies up to 2^5 = 32 datacenters.
    • Machine ID (5 bits): Identifies up to 2^5 = 32 machines within each datacenter.
    • Sequence Number (12 bits): Tracks IDs generated on a machine within the same millisecond, supporting up to 2^12 = 4096 IDs per millisecond. The sequence resets to 0 every millisecond.

  • Advantages:

    • Scalability: Handles 10,000+ IDs per second across multiple servers.
    • Time-Order: Ensures IDs are sortable by time.
    • Decentralization: No single point of failure.

Step 4: Additional Considerations

Section titled “Step 4: Additional Considerations”

1. Clock Synchronization

Section titled “1. Clock Synchronization”
  • Challenge: ID generation assumes synchronized clocks across servers.
  • Solution: Use Network Time Protocol (NTP) to minimize drift.

2. Section Length Tuning

Section titled “2. Section Length Tuning”
  • Adjust section sizes (e.g., fewer sequence bits, more timestamp bits) based on use case.

3. High Availability

Section titled “3. High Availability”
  • ID generators are mission-critical and must be fault-tolerant.
  • Consider redundancy and failover mechanisms.

Study notes aligned with System Design Interview — An Insider’s Guide (Vol. 1). Source notes: liquidslr/system-design-notes.
